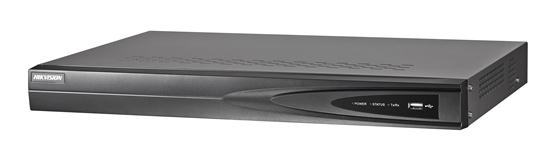

HIKVISION DS-7604NI-K1/4P - 4k NVR
HIKVISION DS-7604NI-K1/4P - 4k NVR
HIKVISION DS-7604NI-K1/4P - 4k NVR

HIKVISION DS-7604NI-K1/4P - 4k NVR

Embedded Plug & Play NVR

  • Third-party network cameras supported
  • Up to 8 Megapixels resolution recording
  • Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) res.
  • 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth
  • Support dual-os to ensure high reliablility of system
  • Plug & Play with up to 4 independent PoE network
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats


SPECIFICATIONS

Video/Audio Input Details
IP video input 4-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network Details
Incoming bandwidth 40Mbps
Outgoing bandwidth 80Mbps

Video/Audio Output Details
HDMI/VGA output
  • 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz
  • 1280*720/60Hz, 1024*768/60Hz
Recording Resolution 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output 1-ch, RCA (Linear, 1kΩ)
VGA Output 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz


Decoding Details
Live view / Playback 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 16-ch@4CIF, 12-ch@720P, 6-ch@1080P
Hard Disk Details
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 6TB capacity for each HDD

External Interface Details
Network Interface 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface 2, USB2.0

POE Details
Interface 4 independent 10 /100 Mbps PoE Ethernet interfaces

General Details
Power Supply 48 VDC
Consumption(without hard disk and POE) ≤ 10W
Working Temperature 0 ºC ~ +40 ºC (+32 ºF ~ +104 ºF)
Working Humidity 10 % ~ 90 %
Chassis 315 mm chassis
Dimensions 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight(without HDD) ≤ 1 Kg (2.2 lb)
