HIKVISION DS-2CD2085FWD-I

8 MP Network Bullet Camera

  • Up to 8 megapixel high resolution
  • Max. 3840 × 2160 @ 20fps
  • 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • DC12V & PoE (802.3af)
  • IR range: up to 30m
  • Support on-board storage, up to 128 GB
  • IP67


SPECIFICATIONS

Camera Details
Image Sensor 1/2.5" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time 1/3 s to 1/100,000 s
Slow shutter Support
Lens
  • 2.8 mm, horizontal field of view: 102°
  • 4 mm, horizontal field of view: 79°
  • 6 mm, horizontal field of view: 50°
  • 8 mm, horizontal field of view: 40°
  • 12 mm, horizontal field of view: 23°
Lens Mount M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night IR cut filter with auto switch
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR

Compression Standard Details
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video bit rate 32Kbps~16Mbps
Triple Streams Yes

Image Details
Max. Image Resolution 3840 × 2160
Frame Rate
  • 50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
  • 50Hz: 25fps (640 × 360, 352 × 288)
  • 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream
  • 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping Support
ROI Support 1 fixed region for each stream
Day/Night Switch Auto/Scheduled

Network Details
Protocols
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
  • PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface Details
Comms Interface 1 RJ45 10M / 100M Ethernet interface
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Smart Feature-set Details
Behavior Analysis Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region
Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal Objects removed from the pre-defined region, such as the exhibits on display.
Recognition Face Detection

General Details
Operating Conditions
  • -30 °C ~ 60 °C (-22 °F ~ 140 °F)
  • Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3
Power Consumption
  • 12 VDC ± 25%, 6.2W
  • PoE(802.3af, class 3), 7.5W
Weather Proof IP67
IR Range Up to 30m
Dimensions
  • Camera: Φ70 × 155.03 mm (Φ2.76″ × 6.1″)
  • Package: 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″)
Weight Camera: 410 g (0.9 lb.)

Schedule Your Free Demo Today!
1300 766 110

Description

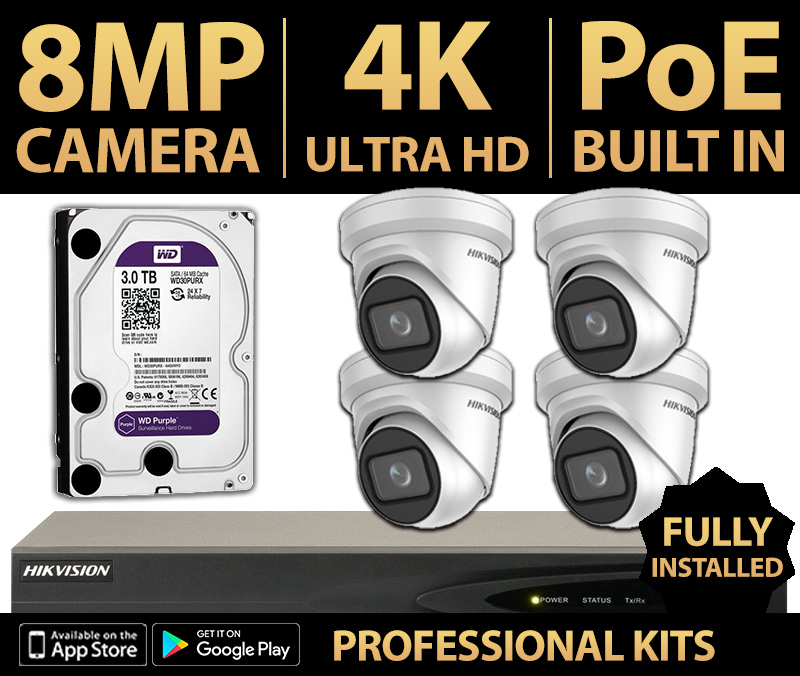

  • This 4 HD camera package comprises of state-of-the-art gear to deter burglaries from your home or business.
  • This 4 channel NVR system is capable of monitoring & recording video from up-to 4x 8MP HD Security Cameras. With State-of-the-art EXIR night vision you'll never miss a moment. This system is capable of monitoring your home while you are away.
  • Set and forget allows you to continuously record video footage from up-to 4 HD security cameras for 7-10 days+ onto a 2TB hard drive, even longer with motion detection. When the recorder becomes full, it intelligently overwrites the oldest video footage.
  • Save valuable hard drive space by enabling motion detection on this security system. When enabled, the recording is only triggered when there is movement detected in front of the camera.
  • See what’s happening live on your iPhone, iPad & Android devices. Any time of the day or night simple open our free app to access your camera system securely from anywhere in the world for easy peace-of-mind.
  • View live video & playback on your iPhone, iPad & Android at 1080P resolution. The way its meant to be watched.

Features and Benefits

  • HD real time video IP Security Cameras
  • 8MP Full HD video quality providing you surprisingly clear video in the day and night
  • Maximum resolution of 2688 × 1520 (4MP) allowing you to zoom in during playback to see more detail
  • With Powerful EXIR Illuminator you get clear night vision
  • Thanks to the EXIR Illuminator each camera has an impressive IR range reaching up to 30m
  • This camera system comes with 2.8mm fixed wide-angle lens
  • With a 2.8mm fixed wide-angle lens you get approx 90° field-of-view from each camera
  • With 3D DNR (Digital noise reduction) and DWDR (Digital Wide Dynamic Range) the cameras are smart enough to adjust picture quality as well as lighting to adapt to each condition throughout the day or night
  • When purchased in this package, these cameras don't require any additional power source. They are powered by PoE (Power over Ethernet) from the NVR (network video recorder)
  • These cameras are suitable for indoor or outdoor use
  • Receive Email alerts with screenshots at set times of the day/night
  • This camera system provides the ability to record video when motion is detected or 24/7
  • With the NVR connected to the internet, you will have the ability to watch your cameras and playback recorded video from anywhere in the world on your iPhone, iPad, and Android devices
  • With IP66 rating, these cameras are "dust tight" and protected against heavy seas or powerful jets of water

Application

Ideal for small applications such as:
  • Small restaurants & takeaways
  • Clothing shops
  • Small workshops & factories
  • Offices
  • Appliances and Electronics
  • Fruit & Veg
  • Fashion & Jewelry
  • Medical clinics
  • Small homes

Schedule Your Free Demo Today!
1300 766 110

Sample Videos

8MP HD Bullet Camera - See faces
8MP HD Bullet Camera - Daytime
8MP HD Bullet Camera - Night vision

What you get with this package

  • 4x 8MP Full HD Security Cameras
  • 4 channel NVR with 4 built in PoE ports
  • 2TB surveillance grade hard drive
  • Mobile access on iPhone, iPad and Android (internet dependent)
  • Warning security stickers
  • 24 months warranty
  • Fully installed by qualified licensed technicians

Still unsure? We're here to help!
Give us a call 1300 766 110 Today!

Schedule Your Free Demo Today!
1300 766 110

Description

  • This 8 HD camera package comprises of state-of-the-art gear to deter burglaries from your home or business.
  • This 8 channel NVR system is capable of monitoring & recording video from up-to 8x 8MP HD Security Cameras. With State-of-the-art EXIR night vision you'll never miss a moment. This system is capable of monitoring your home while you are away.
  • Set and forget allows you to continuously record video footage from up-to 8 HD security cameras for 7-10 days+ onto a 4TB hard drive, even longer with motion detection. When the recorder becomes full, it intelligently overwrites the oldest video footage.
  • Save valuable hard drive space by enabling motion detection on this security system. When enabled, the recording is only triggered when there is movement detected in front of the camera.
  • See what’s happening live on your iPhone, iPad & Android devices. Any time of the day or night simple open our free app to access your camera system securely from anywhere in the world for easy peace-of-mind.
  • View live video & playback on your iPhone, iPad & Android at 1080P resolution. The way its meant to be watched.

Features and Benefits

  • HD real time video IP Security Cameras
  • 8MP Full HD video quality providing you surprisingly clear video in the day and night
  • Maximum resolution of 2688 × 1520 (4MP) allowing you to zoom in during playback to see more detail
  • With Powerful EXIR Illuminator you get clear night vision
  • Thanks to the EXIR Illuminator each camera has an impressive IR range reaching up to 30m
  • This camera system comes with 2.8mm fixed wide-angle lens
  • With a 2.8mm fixed wide-angle lens you get approx 90° field-of-view from each camera
  • With 3D DNR (Digital noise reduction) and DWDR (Digital Wide Dynamic Range) the cameras are smart enough to adjust picture quality as well as lighting to adapt to each condition throughout the day or night
  • When purchased in this package, these cameras don't require any additional power source. They are powered by PoE (Power over Ethernet) from the NVR (network video recorder)
  • These cameras are suitable for indoor or outdoor use
  • Receive Email alerts with screenshots at set times of the day/night
  • This camera system provides the ability to record video when motion is detected or 24/7
  • With the NVR connected to the internet, you will have the ability to watch your cameras and playback recorded video from anywhere in the world on your iPhone, iPad, and Android devices
  • With IP66 rating, these cameras are "dust tight" and protected against heavy seas or powerful jets of water

Application

Ideal for small applications such as:
  • Small restaurants & takeaways
  • Clothing shops
  • Small workshops & factories
  • Offices
  • Appliances and Electronics
  • Fruit & Veg
  • Fashion & Jewelry
  • Medical clinics
  • Small homes

Schedule Your Free Demo Today!
1300 766 110

Sample Videos

8MP HD Bullet Camera - See faces
8MP HD Bullet Camera - Daytime
8MP HD Bullet Camera - Night vision

What you get with this package

  • 8x 8MP Full HD Security Cameras
  • 8 channel NVR with 8 built in PoE ports
  • 4TB surveillance grade hard drive
  • Mobile access on iPhone, iPad and Android (internet dependent)
  • Warning security stickers
  • 24 months warranty
  • Fully installed by qualified licensed technicians

Still unsure? We're here to help!
Give us a call 1300 766 110 Today!

Schedule Your Free Demo Today!
1300 766 110

Description

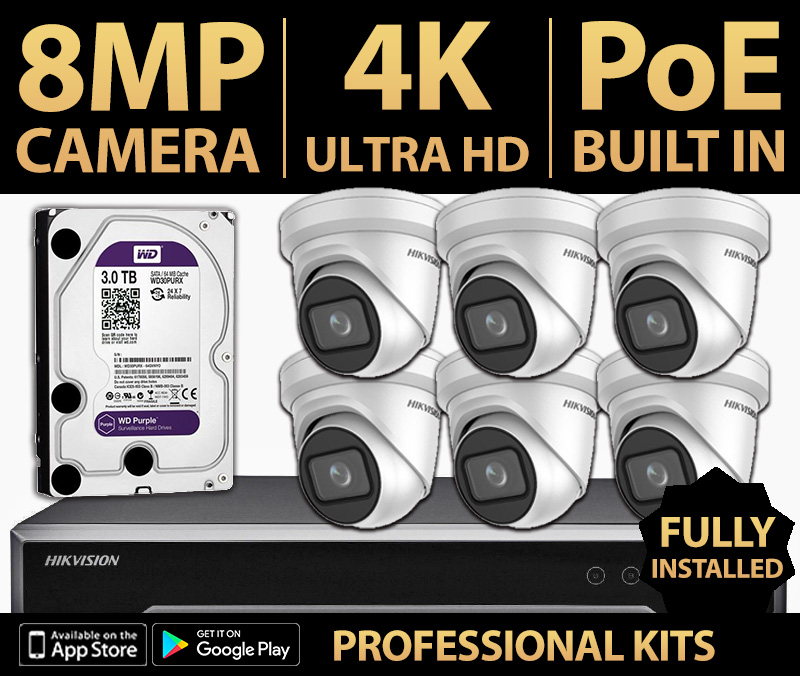

  • This 6 HD camera package comprises of state-of-the-art gear to deter burglaries from your home or business.
  • This 8 channel NVR system is capable of monitoring & recording video from up-to 8x 8MP HD Security Cameras. With State-of-the-art EXIR night vision you'll never miss a moment. This system is capable of monitoring your home while you are away.
  • Set and forget allows you to continuously record video footage from up-to 8 HD security cameras for 7-10 days+ onto a 4TB hard drive, even longer with motion detection. When the recorder becomes full, it intelligently overwrites the oldest video footage.
  • Save valuable hard drive space by enabling motion detection on this security system. When enabled, the recording is only triggered when there is movement detected in front of the camera.
  • See what’s happening live on your iPhone, iPad & Android devices. Any time of the day or night simple open our free app to access your camera system securely from anywhere in the world for easy peace-of-mind.
  • View live video & playback on your iPhone, iPad & Android at 1080P resolution. The way its meant to be watched.

Features and Benefits

  • HD real time video IP Security Cameras
  • 8MP Full HD video quality providing you surprisingly clear video in the day and night
  • Maximum resolution of 2688 × 1520 (4MP) allowing you to zoom in during playback to see more detail
  • With Powerful EXIR Illuminator you get clear night vision
  • Thanks to the EXIR Illuminator each camera has an impressive IR range reaching up to 30m
  • This camera system comes with 2.8mm fixed wide-angle lens
  • With a 2.8mm fixed wide-angle lens you get approx 90° field-of-view from each camera
  • With 3D DNR (Digital noise reduction) and DWDR (Digital Wide Dynamic Range) the cameras are smart enough to adjust picture quality as well as lighting to adapt to each condition throughout the day or night
  • When purchased in this package, these cameras don't require any additional power source. They are powered by PoE (Power over Ethernet) from the NVR (network video recorder)
  • These cameras are suitable for indoor or outdoor use
  • Receive Email alerts with screenshots at set times of the day/night
  • This camera system provides the ability to record video when motion is detected or 24/7
  • With the NVR connected to the internet, you will have the ability to watch your cameras and playback recorded video from anywhere in the world on your iPhone, iPad, and Android devices
  • With IP66 rating, these cameras are "dust tight" and protected against heavy seas or powerful jets of water

Application

Ideal for small applications such as:
  • Small restaurants & takeaways
  • Clothing shops
  • Small workshops & factories
  • Offices
  • Appliances and Electronics
  • Fruit & Veg
  • Fashion & Jewelry
  • Medical clinics
  • Small homes

Schedule Your Free Demo Today!
1300 766 110

Sample Videos

8MP HD Bullet Camera - See faces
8MP HD Bullet Camera - Daytime
8MP HD Bullet Camera - Night vision

What you get with this package

  • 6x 8MP Full HD Security Cameras
  • 8 channel NVR with 8 built in PoE ports
  • 4TB surveillance grade hard drive
  • Mobile access on iPhone, iPad and Android (internet dependent)
  • Warning security stickers
  • 24 months warranty
  • Fully installed by qualified licensed technicians

Still unsure? We're here to help!
Give us a call 1300 766 110 Today!
