DS-2CD215RFWD-I
DS-2CD215RFWD-I
DS-2CD215RFWD-I

DS-2CD215RFWD-I

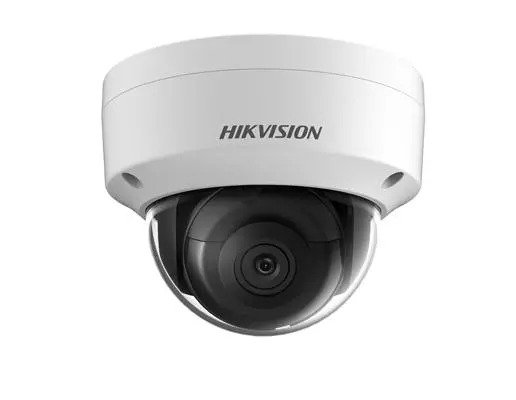

5MP Network Dome Camera

  • Up to 5 megapixel high resolution
  • Max. 2560 × 1920@20fps
  • 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • DC12V & PoE (802.3af)
  • IR range: up to 30 m
  • Support on-board storage, up to 128 GB
  • IP67, IK10


SPECIFICATIONS

Camera Details
Image Sensor 1/2.9" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens
  • 2.8 mm, horizontal field of view: 80°
  • 4 mm, horizontal field of view: 63.5°
  • 6mm, horizontal field of view: 50°
  • 8 mm, horizontal field of view: 33°
  • 12 mm, horizontal field of view: 16°
Lens Mount M12
Adjustment Range Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night IR cut filter with auto switch
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR

Compression Standard Details
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate 32Kbps~16Mbps
Triple Streams Yes

Image Details
Max. Image Resolution 1920 x 1080
Frame Rate
  • 50Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720)
  • 60Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720)
Sub Stream
  • 50Hz: 25fps (640 × 360, 352 × 288)
  • 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream
  • 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping Support
ROI Support 1 fixed region for each stream
Day/Night Switch Auto/Scheduled

Network Details
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Communication Interface 1 RJ45 10M / 100M Ethernet interface
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set: Behavior Analysis Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Smart Feature-set: Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region
Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal Objects removed from the pre-defined region, such as the exhibits on display.
Recognition Face Detection

General Details
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption 12 VDC ± 25%, 6.2 W PoE(802.3af, class 3), 9 W
Weather Proof IP67
Impact Protection IK10
Weather Proof IP67
IR Range Up to 30m
Dimensions Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Weight Camera: 500 g (1.1 lb.)
