DS-2CD2655FWD-IZS
DS-2CD2655FWD-IZS
DS-2CD2655FWD-IZS

DS-2CD2655FWD-IZS

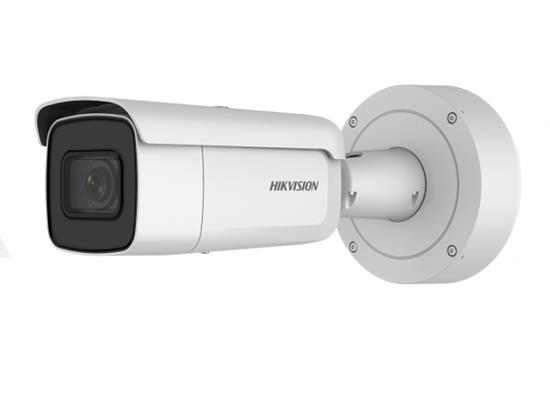

5MP WDR Vari-focal Network Bullet Camera

  • 1/2.9 Progressive Scan CMOS
  • 2944 × 1656 resolution
  • 2.8 to 12 mm focal length
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • BLC/3D DNR/ROI
  • IP67, IK10
  • 4 behavior analyses and face detection


SPECIFICATIONS

Camera Details
Image Sensor 1/2.9" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination
  • Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens
  • 2.8~12mm
  • Horizontal field of view: 88° to 27°
  • Vertical field of view: 48° to 16°
  • Diagonal field of view: 104° to 32°
Lens Mount φ14
Adjustment Range Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night IR Cut Filter
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR

Compression Standard Details
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate 32Kbps~16Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio bit rate 32 to 128kbps
Triple Streams Yes

Image Details
Max. Image Resolution 2944 × 1656
Frame Rate
  • 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
  • 60Hz: 20 fps (2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
Sub Stream
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
  • 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping Support
ROI Support 1 fixed region for each stream
Day/Night Switch Auto/Schedule/Triggered by Alarm In

Network Details
Network Storage microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), ISAPI
Communication Interface 1 RJ45 10M / 100M Ethernet interface
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Alarm Input 1
Alarm Output 1
Video Output 1Vp-p Composite Output (75 Ω, BNC)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio: Environment Noise Filtering Support
Smart Feature-set: Behavior Analysis Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Smart Feature-set: Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region
Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal Objects removed from the pre-defined region, such as the exhibits on display.
Recognition Face Detection

General Details
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption 12 VDC, 1.3A, max. 15.5W PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 17.5W
Impact Protection IK10
Weather Proof IP67
IR Range Up to 50m
Dimensions Φ144.13×332.73 mm (Φ5.67"× 13.10")
Weight Camera: 1893 g (4.17 lb.)
