DS-2CD2955FWD-I(S)
DS-2CD2955FWD-I(S)
DS-2CD2955FWD-I(S)

DS-2CD2955FWD-I(S)

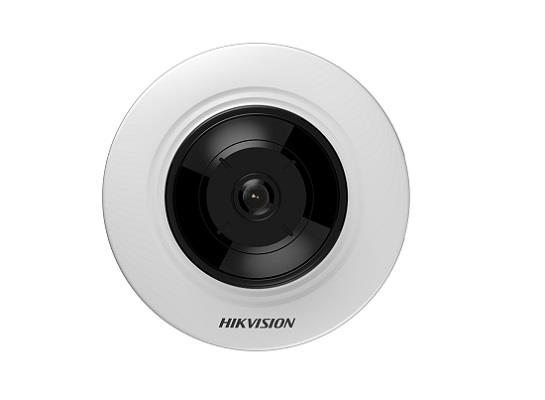

5 MP Network Fisheye Camera

  • Up to 5 megapixel high resolution
  • 2560×1920
  • H.265, H.265+, H.264+, H.264
  • Support 14 display modes
  • FOV: horizontal FOV 180°, vertical FOV 180°
  • Dual video streams
  • DC12V & PoE (802.3af)
  • Digital Noise Reduction
  • Support on-board storage, up to 128 GB
  • Up to 8m IR range
  • -S: Audio/Alarm IO


SPECIFICATIONS

Camera Details
Image Sensor 1/2.5" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens 1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°
Lens Mount M12
Day& Night IR cut filter with auto switch
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR

Compression Standard Details
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile Main Profile/High Profile
Video bit rate 32Kbps~16Mbps
Audio Compression -S: G.711/G.722.1/G.726/MP2L2
Audio bit rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Dual Stream Yes

Image Details
Max. Image Resolution 2560×1920
Frame Rate 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960); 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960)
Sub Stream 50Hz: 25fps (352× 288, 704 × 576); 60Hz: 30fps (352 × 240, 704 × 576)
Image Enhancement BLC/3D DNR
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support
ROI Support 1 fixed region for each stream
Day/Night Switch Auto/Scheduled

Network Details
Network Storage Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface: Audio With –S model: 1 input (line in), 1 output
Communication Interface 1 RJ45 10M / 100M Ethernet interface
Alarm 1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set: Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region

General Details
Operating Conditions -10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption DC 12V ± 25%, 2A, 5W PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W
IR Range Up to 8m
Dimensions Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
Weight 600 g (1.32 lbs.)
