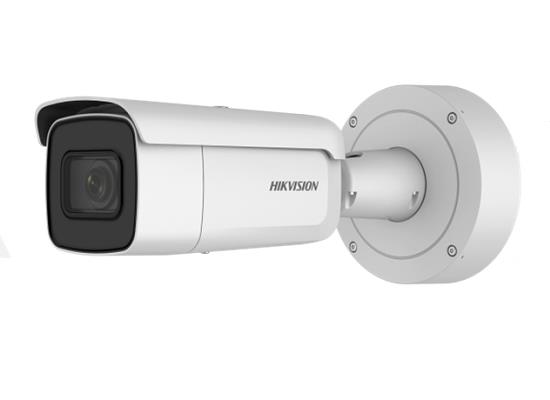

HIKVISION DS-2CD2685FWD-IZS

8 MP WDR Vari-focal Network Bullet Camera

  • 1/2.5 Progressive Scan CMOS
  • Max. 3840 × 2160 @ 20fps
  • 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • BLC/3D DNR/ROI
  • IP67, IK10
  • 4 behavior analyses and face detection


SPECIFICATIONS

Camera Details
Image Sensor 1/2.5" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time 1/3 s to 1/100,000 s
Slow shutter Support
Lens 2.8 to 12 mm
Lens Mount φ14
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night IR cut filter with auto switch
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR
Focus Motorized VF lens(-Z model)

Compression Standard Details
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video bit rate 32Kbps~16Mbps
Audio bit rate 32 to 128kbps
Triple Streams Yes

Image Details
Max. Image Resolution 3840 × 2160
Frame Rate
  • 50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
  • 50Hz: 25fps (640 × 360, 352 × 288)
  • 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream
  • 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping Support
ROI Support 1 fixed region for each stream
Day/Night Switch Auto/Schedule/Triggered by Alarm In

Network Details
Network Storage microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
  • PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface Details
Comms Interface 1 RJ45 10M / 100M Ethernet interface
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Environment Noise Filtering Yes

Smart Feature-set Details
Behavior Analysis Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region
Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal Objects removed from the pre-defined region, such as the exhibits on display.
Recognition Face Detection

General Details
Operating Conditions
  • -30 °C ~ 60 °C (-22 °F ~ 140 °F)
  • Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3
Power Consumption
  • 12 VDC, 1.5A, max. 17W
  • PoE (802.3at, 42.5V to 57V), 0.1A to 0.5A, max. 19W
Weather Proof IP67
IR Range Up to 50m
Dimensions Φ144.13×332.73 mm (Φ5.67"× 13.10")
Weight Camera: 1893 g (4.17 lb.)
