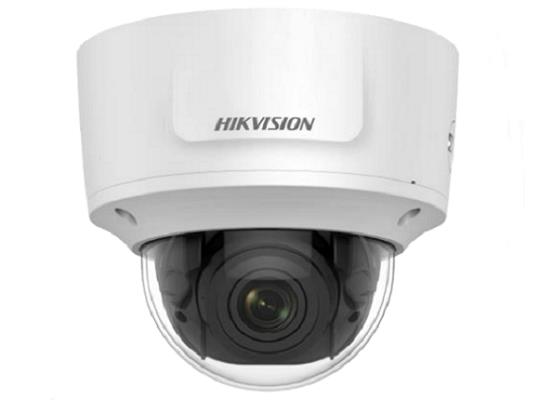

HIKVISION DS-2CD2785FWD-IZS
8 MP WDR Vari-focal Network Dome Camera
1/2.5 Progressive Scan CMOS
Max. 3840 × 2160 @ 20fps
2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
H.265, H.265+, H.264+, H.264
120dB Wide Dynamic Range
BLC/3D DNR/ROI
IP67, IK10
4 behavior analyses and face detection
Customer Reviews
Melbourne’s Top Rated Security Company
★★★★★
WilliamstownRead More
"Companies should take note this is what real customer service and professionalism is all about, I would give precision 10/10 and will be and have been recommending precision to my friends and family."
★★★★★
LalorRead More
" Very professional and heaps of knowledge. Was in and out in less than half a day. Highly recommend Precision Security Australia to anyone. Just some advise to buyers, don't compromise dollars for quality of a product and service from a professional."
★★★★★
DerrimutRead More
"I used Precision Security to install camera's for my warehouse and work was done very professionally. Omar took time to setup the camera's as per my requirements and spent time to explain the functions later. Great quality camera & workmanship with reasonable rates. Highly recommended!"
★★★★★
SomertonRead More
"The quality is amazing. The setup of the line triggering is perfect and works flawlessly. Highly recommend if you want a company that puts you first and cares. Thanks heaps for the great service!"
★★★★★
AbbotsfordRead More
" Could not be happier with the setup we’ve got. These blokes clearly knew what they were doing. They were sincere with their pricing and trade-offs that could be made. No one-size-fits-all package."
★★★★★
EssendonRead More
"Absolutely top job,very happy with the results. These guys know what they're doing. Recommend Precision Security? Yes, I do."
★★★★★
ReservoirRead More
"Fantastic service and have excellent camera and recording equipment. Very knowledgeable and made some great suggestions. Highly recommended, quick and efficient. Very happy camper. 🙂"
★★★★★
Pascoe ValeRead More
"Great customer service. Went above and beyond to find a solution to a tricky wall. Helped set up cameras and showed me how to make changes. Best thing, im not hit with countless notifications"
★★★★★
FootscrayRead More
"Omar and the team are brilliant. The team are extremely professional, knowledgeable and support after installation is second to none. Highly recommend Precision Security!!"
SPECIFICATIONS
DOWNLOADS
SPECIFICATIONS
Camera | Details |
---|---|
Image Sensor | 1/2.5″ Progressive Scan CMOS |
Signal System | PAL/NTSC |
Min. Illumination | Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR |
Shutter time | 1/3 s to 1/100,000 s |
Slow shutter | Support |
Lens | 2.8 to 12 mm |
Lens Mount | φ14 |
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120 dB |
Digital noise reduction | 3D DNR |
Focus | Motorized VF lens(-Z model) |
Compression Standard | Details |
---|---|
Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
Video bit rate | 32Kbps~16Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2 |
Audio bit rate | 32 to 128kbps |
Triple Streams | Yes |
Image | Details |
---|---|
Max. Image Resolution | 3840 × 2160 |
Frame Rate |
|
Sub Stream |
|
Third Stream |
|
Image Enhancement | BLC/3D DNR |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Target Cropping | Support |
ROI | Support 1 fixed region for each stream |
Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
Network | Details |
---|---|
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
Protocols |
|
General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | Details |
---|---|
Comms Interface | 1 RJ45 10M / 100M Ethernet interface |
Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
Alarm Input | 1 |
Alarm Output | 1 |
Video Output | 1Vp-p Composite Output (75 Ω, BNC) |
On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button | Yes |
Environment Noise Filtering | Yes |
Smart Feature-set | Details |
---|---|
Behavior Analysis | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
Line Crossing Detection | Cross a pre-defined virtual line |
Intrusion Detection | Enter and loiter in a pre-defined virtual region |
Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
Recognition | Face Detection |
General | Details |
---|---|
Operating Conditions |
|
Power Supply | 12 VDC ± 25%, PoE (802.3af Class3 |
Power Consumption |
|
Weather Proof | IP67 |
Impact Protection | IK10 |
IR Range | Up to 30m |
Dimensions | Φ153.4 × 133.1 mm (Φ6.04″ × 5.24″) |
Weight | Camera: 1287 g (2.84 lb.) |
DOWNLOADS
Download the HIKVISION DS-2CD2785FWD-IZS datasheet
