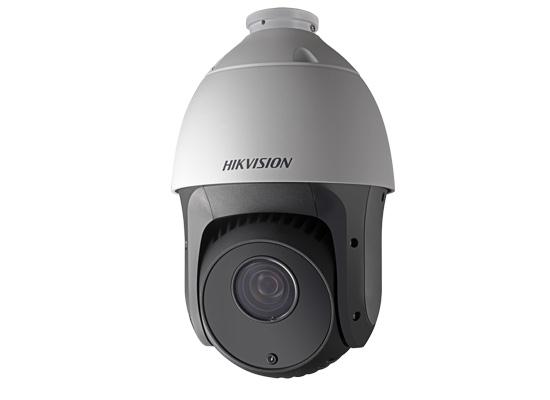

HIKVISION DS-2DE5220IW-AE

2MP 20X Network IR PTZ Camera

  • 1/2.8
  • 1920 x 1080
  • 20X Optical Zoom
  • DWDR
  • 3D intelligent positioning function
  • Support Hik cloud P2P
  • Up to 150m IR distance
  • Hi-PoE / 24VAC power supply
  • Support BNC output


SPECIFICATIONS

Camera Details
Image Sensor 1/2.8" Progressive Scan CMOS
Effective Pixels 1920(H)x1080(V)
Signal System PAL/NTSC
Min. Illumination F1.5, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC Auto/Manual
BLC ON/OFF
HLC Support
Smart defog Support
WDR DWDR
Shutter Time 1-1/10,000s
Digital Zoom 16X
Privacy Masking 8 privacy masks programmable
Auto Focus Auto / Semi-automatic / Manual

Lens Details
Focal Length 4.7-94.0mm, 20x
Zoom Speed Approx.3s(Optical Wide~Tele)
Angle of View 58.3-3.2 degree (Wide~Tele)
Minimum Working Distance 10~1,000mm(Wide~Tele)
Aperture Range F1.6~F3.5

Pan & Tilt Details
Pan Range 360° continuous
Pan Speed Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range 15°-90° (Auto Flip )
Tilt Speed Tilt Manual Speed: 0.1°~200°/s, Tilt Preset Speed: 200°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Power loss recovery Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display ON/OFF
Freeze Frame Support

Infrared / Alarm / Input & Output / Details
IR irradiation distance 150m
IR irradiation angle Adjustable by zoom
Alarm Input 2
Alarm Output 1
Alarm Actions Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Monitor Output 1.0Vp-p, 75 Ohm, BNC
Audio Input
  • 1 Mic in/Line in interface
  • Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface | Line level, impedance: 600Ω

Network Details
Ethernet 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution 1920×1080
Main Stream
  • 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720)
  • 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
  • 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Image Compression H.264 / MJPEG
ROI encoding Support 4 areas with adjustable levels
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:
  • IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP
  • RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users Up to 20 users
Dual Stream Support
Mini SD Card Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures
  • User authentication (ID and PW)
  • Host authentication (MAC address)
  • IP address filtering
EZVIZ Support
Client GUI
Camera Control Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display Time: Week: Date, 6 formats on the Client
Client Support iVMS-4200
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General Details
Menu Language English
Power Supply 24 VAC & Hi-PoE
Power Consumption Max.32W
Working Temperature/Humidity -30°C ~ 65°C (-22°F ~ 149°F)
Protection Level
  • IP66 standard (outdoor dome)
  • TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimensions Φ185(mm)×330(mm)
Weight (approx.) 4kg (8.81lbs)
Mount Option
  • Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
  • Swan-neck mount: DS-1619ZJ
