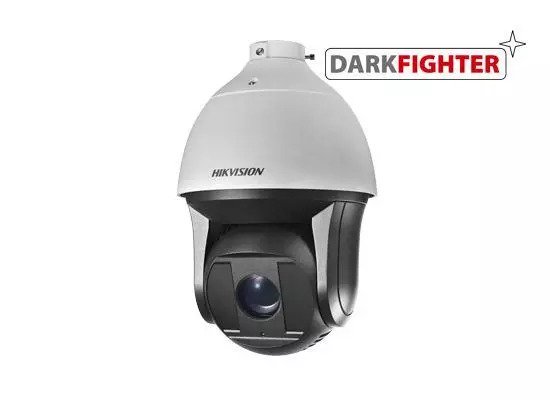

HIKVISION DS-2DF8236I-AEL(W)

2MP Ultra-low Light Smart PTZ Camera

  • 1/1.9” HD CMOS sensor
  • Optical Defog
  • 36X Optical Zoom
  • Ultra-low illumination
  • 120db True WDR
  • Smart Tracking
  • Smart Detection
  • EIS (Electronic Image Stabilization)
  • 200m IR distance
  • Optional wiper(-W)
  • Hi-PoE / 24VAC power supply


SPECIFICATIONS

Camera Details
Image Sensor 1/2.8" Progressive Scan CMOS
Effective Pixels 1920(H)x1080(V)
Signal System PAL/NTSC
Min. Illumination F1.5, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC Auto/Manual
BLC ON/OFF
HLC Support
Smart defog Support
WDR DWDR
Shutter Time 1-1/10,000s
Digital Zoom 16X
Privacy Masking 8 privacy masks programmable
Auto Focus Auto / Semi-automatic / Manual

Lens Details
Focal Length 5.7-205.2, 36x
Zoom Speed Approx.3s(Optical Wide~Tele)
Angle of View 58.7-2.0 degree (Wide-Tele)
Minimum Working Distance 10~1,000mm(Wide~Tele)
Aperture Range F1.5~F4.5

Pan & Tilt Details
Pan Range 360° continuous
Pan Speed Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range -20°~90°(Auto Flip)
Tilt Speed Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display ON/OFF
Freeze Frame Support
Smart-tracking
  • Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
  • Smart tracking when patrol between multiple scenarios
Wiper Optional

Infrared / Alarm / Input & Output / Details
IR irradiation distance 200m
IR irradiation angle Adjustable by zoom
Alarm Input 7
Alarm Output 2
Alarm Actions Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Monitor Output 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input
  • 1 Mic in/Line in interface
  • Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface | Line level, impedance: 600Ω

Network Details
Ethernet 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution 1920×1080
Main Stream
  • 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720)
  • 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream
  • 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
  • 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Third Stream
  • 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144)
  • 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
Image Compression H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
ROI encoding Support 24 areas with adjustable levels
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:
  • v4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP
  • RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users Up to 20 users
Three-Stream Support
Mini SD Card Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures
  • User authentication (ID and PW)
  • Host authentication (MAC address)
  • IP address filtering
Client GUI
Camera Control Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display Time: Week: Date, 6 formats on the Client
Client Support iVMS-4200
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General Details
Menu Language English
Power Supply 24 VAC & Hi-PoE
Power Consumption Max.60W
Working Temperature/Humidity -40°C ~ 65°C (-40°F ~ 149°F)
Protection Level
  • IP66 standard (outdoor dome)
  • IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimensions Φ266.6(mm)×365.2(mm)
Weight (approx.) 8kg (approx.)
Mount Option
  • Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
  • Swan-neck mount: DS-1619ZJ
