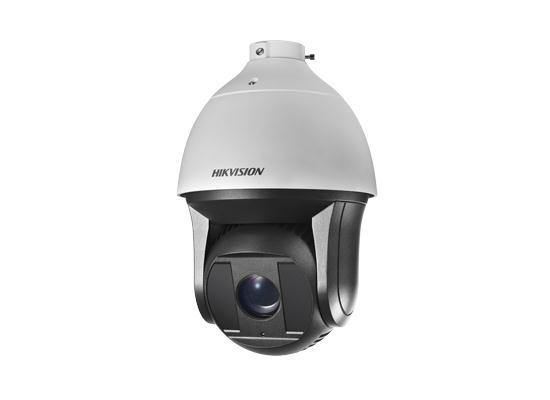

HIKVISION DS-2DF8836IV-AEL(W)

4K Smart IR PTZ Camera

  • 1/1.9” HD CMOS sensor
  • 4K 8MP(4096*2160)
  • 36X Optical Zoom
  • Smart Tracking
  • Smart Detection
  • 200m IR distance
  • Optional wiper(-W)
  • Hi-PoE / 24VAC power supply


SPECIFICATIONS

Camera Details
Image Sensor 1/1.9" HD CMOS sensor
Effective Pixels 4096x2160
Signal System PAL/NTSC
Min. Illumination F1.5, 50IRE, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR
White Balance Auto / Manual
AGC Auto/Manual
BLC ON/OFF
HLC Support
Smart defog Support
WDR Support
Shutter Time 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Digital Zoom 16X
Day& Night ICR
Privacy Masking 24 privacy masks programmable
Auto Focus Auto / Semi-automatic / Manual

Lens Details
Focal Length 5.7-205.2, 36x
Zoom Speed Approx.7.4s(Optical Wide-Tele)
Angle of View 56.8-2.02 degree (Wide-Tele)
Minimum Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.55~F4.8

Pan & Tilt Details
Pan Range 360°endless
Pan Speed Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s
Tilt Range -20°~90°(Auto Flip)
Tilt Speed Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display ON/OFF
Freeze Frame Support
Smart-tracking Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper Optional

Infrared / Alarm Details
IR irradiation distance 200m
IR irradiation angle Adjustable by zoom
Alarm Input 7
Alarm Output 2
Alarm Actions Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

Network Details
Ethernet 10Base -T, /100Base-TX, RJ45 Connector
Main Stream
  • 50Hz:25fps(4096×2160, 3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720)
  • 60Hz:24fps(4096×2160), 30fps(3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720)
Sub Stream 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream
  • 50Hz: 25fps(704×576, 640×480, 352×288
  • 60Hz: 30fps(704×480, 640×480, 352×240)
Image Compression H.264 / MJPEG
ROI encoding Support 6 areas with adjustable levels
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode OFF/Audio input/Audio output
Protocols:
  • IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS
  • NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users Up to 20 users
Three-Stream Support
Mini SD Card Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures
  • User authentication (ID and PW)
  • Host authentication (MAC address)
  • IP address filtering
Client GUI
Camera Control Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display Time: Week: Date, 6 formats on the Client
Client Support iVMS-4200
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General Details
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language English
Power Supply High-PoE&24 VAC, Max.60W
Power Consumption Max.60W
Working Temperature/Humidity -40°C ~ 65°C (-40°F ~ 149°F)
Protection Level IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
Dimensions Φ266.6(mm)×435(mm)
Weight (approx.) 8kg (approx.)
Mount Option
  • Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
  • Swan-neck mount: DS-1619ZJ
