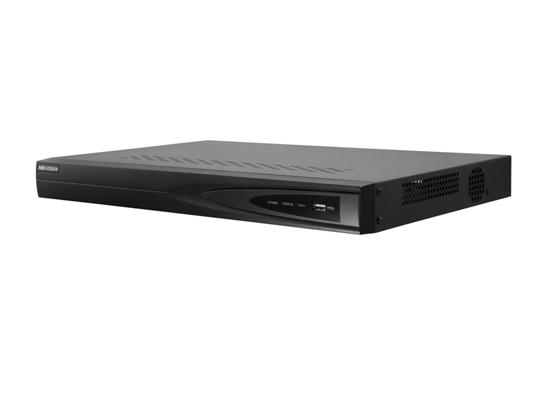

HIKVISION DS-7608NI-E2/8P NVR
HIKVISION DS-7608NI-E2/8P NVR
HIKVISION DS-7608NI-E2/8P NVR

HIKVISION DS-7608NI-E2/8P NVR

Embedded Plug & Play NVR

  • Up to 6 Megapixel Resolution Recording
  • 80 Mbps Incoming Bandwidth
  • Supports H.264+ and H.264
  • Synchronous HDMI & VGA Output 1920 × 1080p Res.
  • 8-ch Network Cameras Can Be Connected
  • Up to 2 SATA Interfaces
  • Plug & Play w/Up to 4 Independent PoE Connections
  • Supports Network Detection, Network Delay, Packet Loss
  • Alarm and Audio I/O


SPECIFICATIONS

Video/Audio Input Details
IP video input 8-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network Details
Incoming bandwidth 80Mbps
Outgoing bandwidth 80Mbps
Remote connection 128

Video/Audio Output Details
HDMI/VGA output
  • 1-ch, resolution
  • 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz
  • 1024 × 768 /60Hz
Recording Resolution
  • 6 MP/5 MP/4 MP/3 MP 1080p/UXGA/720p/
  • VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate
  • Main stream: 50 fps (P) / 60 fps (N)
  • Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback 8-ch


Decoding Details
Live view / Playback 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 8-ch@720P, 6-ch@1080P
Hard Disk Details
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 4TB for each disk

External Interface Details
Network Interface 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Alarm In 4-ch
Alarm Out 1-ch

POE Details
Interface 8 independent 100 Mbps PoE network interfaces
Max. Power 120W
Supported Standard AF and AT

General Details
Power Supply 100~240VAC
Consumption(without hard disk and POE) ≤ 10W
Working Temperature -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity 10 % ~ 90 %
Chassis 19-inch rack-mounted 1U chassis
Dimensions <445 × 290 × 45mm (17.5 ×11.4 × 1.8 inch)
Weight(without HDD) ≤ 1 Kg (2.2 lb)
