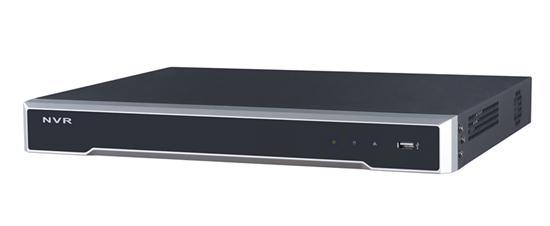

HIKVISION DS-7608NI-I2/8P - 4k NVR
HIKVISION DS-7608NI-I2/8P - 4k NVR
HIKVISION DS-7608NI-I2/8P - 4k NVR

HIKVISION DS-7608NI-I2/8P - 4k NVR

Embedded Plug & Play NVR

  • Third-party network cameras supported
  • Up to 8 Megapixels resolution recording
  • Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) res.
  • 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth
  • Support dual-os to ensure high reliablility of system
  • Plug & Play with up to 4 independent PoE network
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats

SPECIFICATIONS

Video/Audio Input Details
IP video input 8-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network Details
Incoming bandwidth 80Mbps
Outgoing bandwidth 256Mbps
Remote connection 32
HDMI output
  • 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz,
  • 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output
  • 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video/Audio Output Details
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback 8-ch


Decoding Details
Live view / Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 2-ch @ 4K, or 8-ch @ 1080p
Hard Disk Details
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 6TB capacity for each HDD

External Interface Details
Network Interface 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Alarm In 4-ch
Alarm Out 1-ch

POE Details
Interface 8 independent 10 /100 Mbps PoE Ethernet interfaces
Max. Power 120W
Supported Standard AF and AT

General Details
Power Supply 100~240 VAC/50~60 Hz
Consumption(without hard disk and POE) ≤15 W
Working Temperature -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity 10 % ~ 90 %
Dimensions 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight(without HDD) ≤ 3 kg (6.6 lb)
