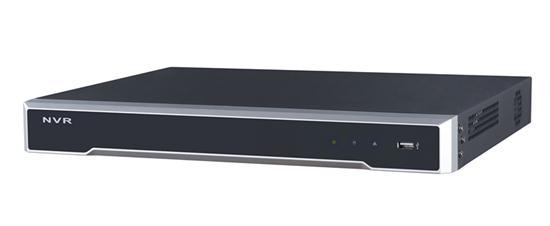

HIKVISION DS-7616NI-I2/16P - 4k NVR
HIKVISION DS-7616NI-I2/16P - 4k NVR
HIKVISION DS-7616NI-I2/16P - 4k NVR

HIKVISION DS-7616NI-I2/16P - 4k NVR

Embedded Plug & Play NVR

  • Up to 12 Megapixel Resolution Recording
  • 160 Mbps Incoming Bandwidth
  • Supports H.264, H.264+, H265 and H265+
  • HDMI and VGA independent outputs provided
  • HDMI video output up to 4K (3840*2160)
  • 16-ch Network Cameras Can Be Connected
  • 2 SATA Interface
  • Plug & Play w/Up to 16 Independent PoE Network
  • Supports Network Detection, Network Delay, Packet Loss
  • Alarm and Audio I/O
  • Supports network detection, including network delay, packet loss, etc


SPECIFICATIONS

Video/Audio Input Details
IP video input 16-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network Details
Incoming bandwidth 160Mbps
Outgoing bandwidth 256Mbps
Remote connection 128
HDMI output
  • 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz,
  • 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output
  • 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video/Audio Output Details
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback 16-ch


Decoding Details
Live view / Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 4-ch @ 4K, or 16-ch @ 1080p
Hard Disk Details
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 6TB capacity for each HDD

External Interface Details
Network Interface 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Alarm In 4-ch
Alarm Out 1-ch

POE Details
Interface 16 independent 10 /100 Mbps PoE Ethernet interfaces
Max. Power 200W
Supported Standard AF and AT

General Details
Power Supply 100~240 VAC/50~60 Hz
Consumption(without hard disk and POE) ≤15 W
Working Temperature -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity 10 % ~ 90 %
Dimensions 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight(without HDD) ≤ 3 kg (6.6 lb)
