Access Control Products
Access Control Brands We Use
With over 30 years in the industry ZKTeco, a globally-renowned leader of access control and time management solutions, have developed world leading biometric solutions for access control.
We’re excited to offer state-of-the-art ZKTeco access control and biometric solutions to business and homes throughout Melbourne. This is the next level of security.
The product line below includes RFID swipe card readers, Biometric fingerprint readers, IP-Based access control panels, and standalone terminals. All our control panels support the industry standard Wiegand communication.
Secure Your Business, Guarantee Customer Safety,
and Increase Patronage Today!
Do you know that it only takes criminals a minute to break into your business?
SMK-Series
Standalone Metal Keypad and Card reader
SMK series are an outdoor IP65-rated vandal-resistant metallic card reader with a back-lit keypad.
SMK series have a built-in 12V relay contact which can be connected directly to either an electric strike or magnetic door lock.
For the highest level of security and programming flexibility, SMK also has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).
SMK series come standard with a built-in ZKAccess 125 KHz 26-bit RFID card reader. Mifare card reader option available.
IP65-rated vandal-proof metallic enclosure
Standard ZK 125 kHz 26-bit card reader
Relay outputs for electric lock and alarm
Auxiliary inputs for door status sensor and exit switch
Stores up to 1,000 cards
Wiegand-Out port can connect SMK-V and SMK-H to ZKAccess access control panels
Built-in speakers & LEDs provide users both audio & visual feedback
With a modern and robust design the KR600 series RFID readers offer the possibility to control one door from both sides. The LED lights indicate access granted or denied.
They have a RFID proximity reading range of up to 10cm in the E series case and up to 5cm in the M series case.
Ideal for outdoor or indoor solutions because they’re waterproof, and the operating temperatures can range from -20º to +65º. For best results we recommend they are operated with the C3-x series of control panels.
Easy to install
125KHz Proximity Card Reader
Read Range: Up to 10CM
Built-in Wiegand input/output
2 Color LED Indicators (Red and Green)
External Buzzer
Indoor / Outdoor Use
Waterproof IP65 rated
Reverse Polarity Protection
Elegant and robust design
KR600-Series
FR1200
FR1200, a fingerprint reader that operates with biometric access controllers and fingerprint standalone access control panels, including inBIO series controllers, F8 and so on.
It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.
Featuring a compact and simple design, this reader is a new concept of InBio fingerprint readers.
Fingerprint and RFID Reader in one device
IP65-rated vandal-proof metallic enclosure indoor and outdoor use
Standard ZK 125 kHz 26-bit card reader
Wiegand-Out port can connect FR1200 to ZKAccess InBio access control panels
Built-in speakers & LEDs provide users both audio & visual feedback
F16 is a fingerprint access control terminal with an integrated proximity reader (EM). It is IP65 rated which enables it to be resistant from water, dust and other outside damages.
It can be installed easily on your network having both Ethernet and RS485 serial ports. Wiegand-out port allows connection of the reader to ZK or any 3rd party access control panels panel.
Using Wiegand-In port, you can connect to any card readers for authentication at both entrance and exit.
Rugged Structure for Outdoor Installation and Extra Durability
Fast and Accurate Fingerprint Algorithm
Easy Installation and Connectivity
Slim and Elegant Design
Full Access Control Features
Stores 3,000 Fingerprints, 30,000 cards
Authentication type suppoted fingerprint/card or Fingerprint & Card
F16
IP65 Rated Outdoor Fingerprint Access Control Terminal
TF1700
TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing.
With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others.
The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKAccess3.5 management software which has versatile features and powerful functions.
Rugged Structure for Outdoor Installation and Extra Durability
Fast and Accurate Fingerprint Algorithm
Easy Installation and Connectivity
Slim and Elegant Design
Full Access Control Features
Easy Operation and Management
Stores 3,000 Fingerprints, 10,000 cards
Buzzer and multi-color LED

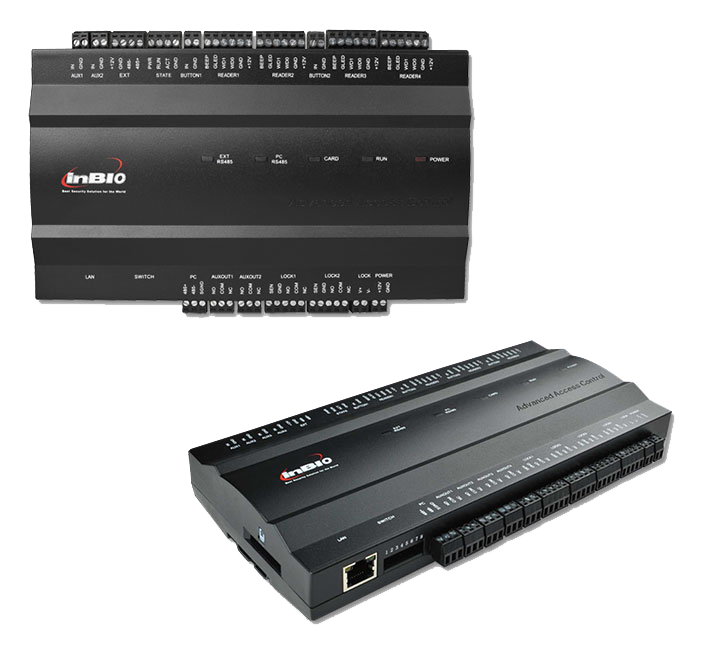

InBio carries out the matching of fi ngerprints on the panels. The FR Series of readers transmit fi ngerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modi cation of network parameters directly and easily.
InBio controller fi rmware can be upgraded in the field. Stores up to 3,000 fingerprint templates, 30,000 card users, and up to 100,000 events and transactions. Controller is backed up in real-time in on-board SD card. Data is preserved if power is lost. InBio continues to operate if network connection is interrupted. Along with relay contacts for controlling door locks, easily programmable auxiliary relays can be used for additional control and interface to lights, alarms, annunciators, intrusion detection panels, or even extra locking devices or gate controllers.
InBio controllers come in three sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture. Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxiliary Input/Output Linkages are built into controller firmware.
Truly Internal Biometric Identification
Carries out the matching of fingerprints on the panels
IP Communication
Control Panel comes in three sizes; 1 door, 2 door and 4 door
Support up to 3000 fingerprint templates, 30,000 badge users and store up to 100,000 events and transactions
Advanced Access Control Built-In
Lowest Total Cost of Ownership
InBio Control Panel Series
C3 Series
IP Based RFID Access Control Panel
ZKAccess Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system-all from a browser, with no additional software to install.
Our secure Web-hosted infrastructure and centralised online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3 series’ versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features.
The C3 series control panel can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
Wifi module optionally available
Choice of RFID Readers
Lowest Total Cost of Ownership
Additional control through Auxiliary relays
IP-based communication
Supports up to 30,000 badge users and store up to 100,000
1-door, 2-door, and 4-door models available
Built-In Advanced Access Control
