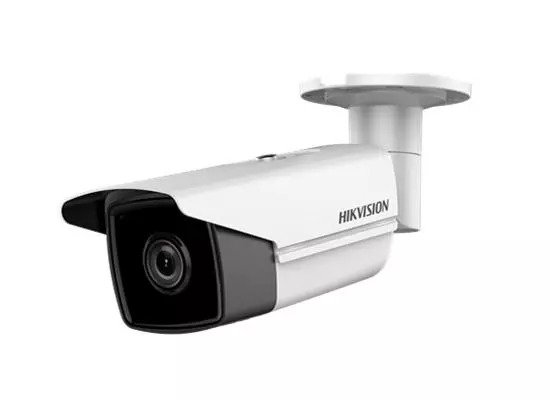

HIKVISION DS-2CD2T85FWD-I5/I8

8 MP Network Bullet Camera

  • Up to 8 megapixel high resolution
  • Max. 3840 × 2160 @ 20fps
  • 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • DC12V & PoE (802.3af)
  • IR range: up to 30m
  • Support on-board storage, up to 128 GB
  • IP67


SPECIFICATIONS

Camera Details
Image Sensor 1/2.5" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time 1/3 s to 1/100,000 s
Slow shutter Support
Lens
  • 2.8 mm, horizontal field of view: 102°
  • 4 mm, horizontal field of view: 79°
  • 6 mm, horizontal field of view: 50°
  • 8 mm, horizontal field of view: 40°
  • 12 mm, horizontal field of view: 23°
Lens Mount M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night IR cut filter with auto switch
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR

Compression Standard Details
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video bit rate 32Kbps~16Mbps
Triple Streams Yes

Image Details
Max. Image Resolution 3840 × 2160
Frame Rate
  • 50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
  • 50Hz: 25fps (640 × 360, 352 × 288)
  • 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream
  • 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping Support
ROI Support 1 fixed region for each stream
Day/Night Switch Auto/Scheduled

Network Details
Protocols
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
  • PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface Details
Comms Interface 1 RJ45 10M / 100M Ethernet interface
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Smart Feature-set Details
Behavior Analysis Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region
Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal Objects removed from the pre-defined region, such as the exhibits on display.
Recognition Face Detection

General Details
Operating Conditions
  • -30 °C ~ 60 °C (-22 °F ~ 140 °F)
  • Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3
Power Consumption
  • -I5: 12 VDC ± 25%, 7.5W; PoE, 9.5W
  • -I8: 12 VDC ± 25%, 10 W; PoE, 12.5W
Weather Proof IP67
IR Range -I5: up to 50 m; -I8: up to 80 m
Dimensions
  • Camera: Φ104.8 × 299.7 mm (Φ4.13″ × 11.8″)
  • Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
Weight 1200 g (2.65 lb.)
